Amplificatoare De Putere Monobloc Audionet HEISENBERG, Pereche, 2 X 530W

Amplificatoare De Putere Monobloc Audionet HEISENBERG

Designed by German design legend Hartmut Esslinger of Cupertino fame, our new über-performance power amp HEISENBERG combines Audionet’s unique electronics, stratosphere version, with a design quality that has not been seen in the realms of highenddom before.

The patented FLOATING PANE DESIGN encorporates the ultimate audiophile qualities.

One amp to rule them all – HEISENBERG rises high above anything, anywhere – even our serial show winners ART and VIP (2015 “best sound” at RMAF, AXPONA, T.H.E.SHOW and HIGHEND).

Special features HEISENBERG

• Mono power amplifier for absolute channel separation.
• Magnetically and capactively optimized circuit and device design without any ferro-magnetic materials
• Floating Pane Design for optimal resistance against microphonic effects and temperature stability.
• The floating panels of the body are resonance-optimized by pads on an aluminum frame.
• Mounting and bolted assembly of transformers made of stainless steel.
• Air Flow Design circuit boards for an optimum of cooling and stable quiescent currents.
• Galvanic separation of all analog circuits by opto couplers.
• Audionet ULA technology (Ultra Linear Amplifier) for real-time linearization of distortions.
• Rhodium Cinch jacks and Rhodium torque speaker terminals by Furutech.
• DC coupled with no sound diminishing capacitors or coils, shortest signal paths.
• Lossless signal transport via massive, gold-plated copper rails to the speaker terminals.
• No speaker relays.
• Two separate power supplies for device control and detection / monitoring of zero-crossing of mains power.
• Four power supplies for positive and negative power currents, separate for input & driver stage and power stage.
• Two encapsulated und decoupled 50 VA toroid transformers for input & driver stage.
• Two encapsulated and decoupled 1,200 VA toroid transformers for the power stage – ensuring a perfect power supply.
• Low impedance-optimized power capacitors with a total capacitance of 200,000 µF.
• Microprocessor controlled protection circuit with separate power supply, detecting high frequency, DC, overload and overheating.
• Rhodium fuse for mains and secondary side.
• Rhodium mains connector by Furutech.

Function
Ultimate Linear Mono Power Amplifier.

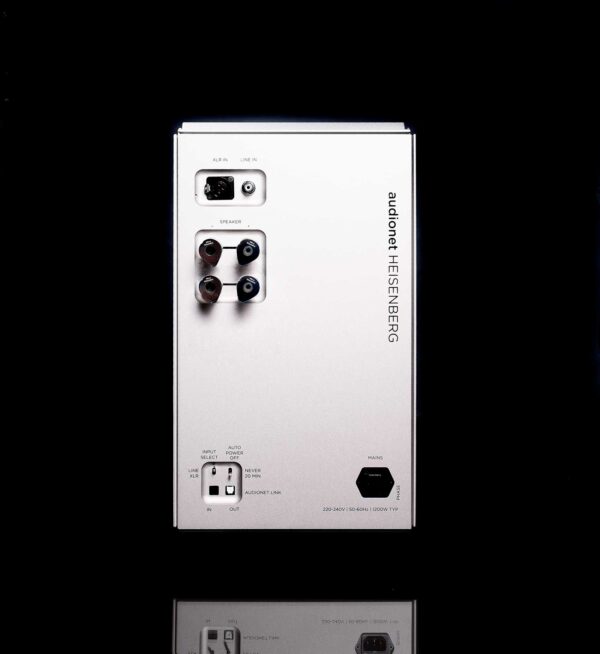

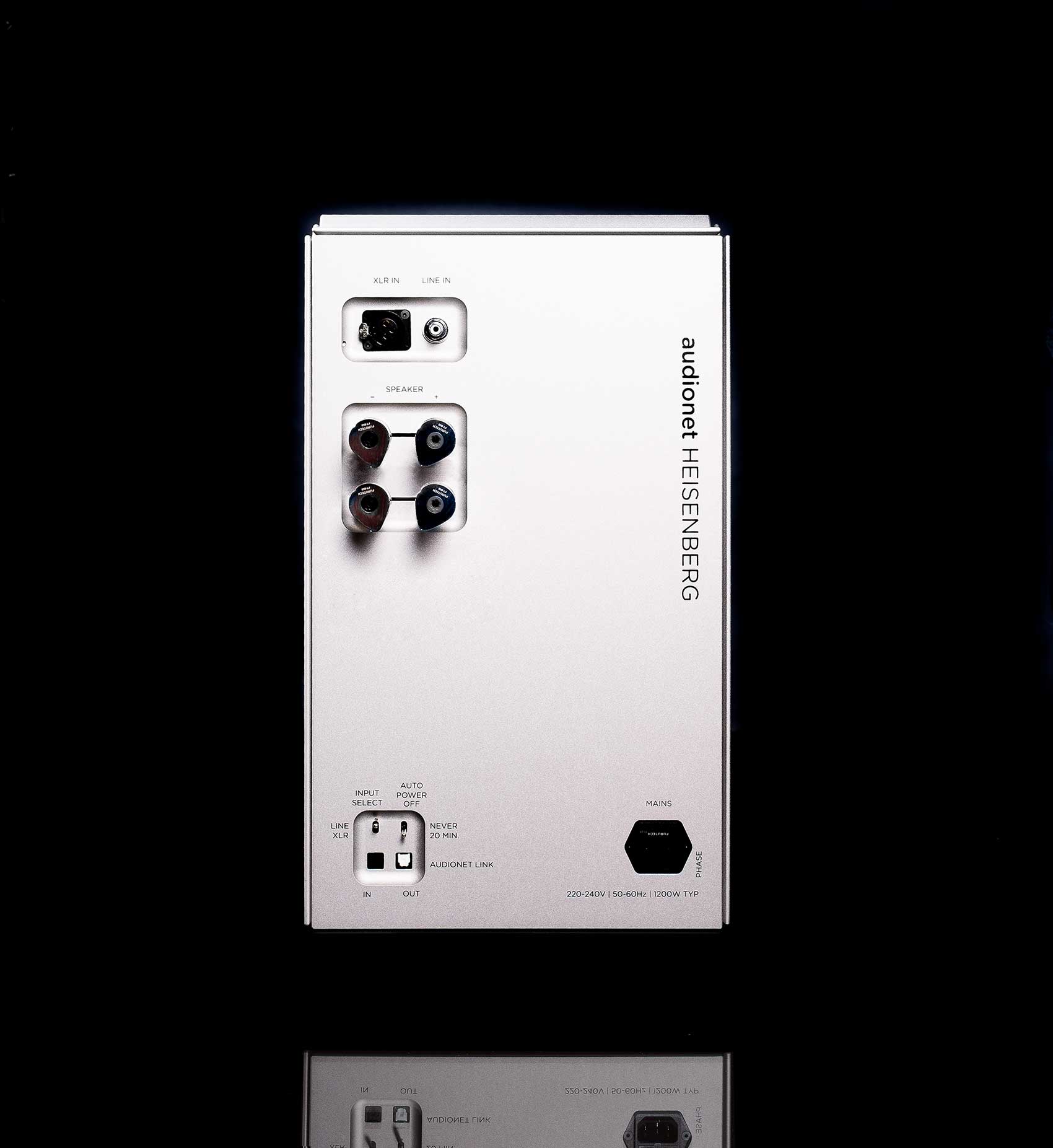

In- and Outputs
Inputs:
1 Cinch line, Rhodium plated, Teflon insulated (Furutech)
1 XLR balanced, gold plated (Neutrik)
1 Audionet Link, optical (TosLink)
Outputs:
2 pair speaker terminals, Rhodium plated, with torque guard (Furutech)
1 Audionet Link, optical (TosLink)

Technical Data
Output power: 530 W into 8 Ω/ 1,050 W into 4 Ω/ 2,100 W into 2 Ω
Frequency response: 0–700,000 Hz (-3 dB)
Damping factor: > 1,800 @ 10 kHz/ > 10,000 @ 100 Hz
Harmonic distortion: k2 typ. -117 dB for 25 W into 4 Ω/ k3 typ. -123 dB for 25 W into 4 Ω
Intermodulation: < -110 dB SMPTE 100 Hz : 20 kHz, 4 : 1, 50 W into 4 Ω
THD + N: > -106 dB @ 1 kHz, 25 W to 700 W into 4 Ω
SNR: > 125 dB
Filtering capacitance: 200,000 µF
Input impedance: Line input: 50 kΩ, 33 pF
XLR input: 7 kΩ 66 pF (line to line)
Power consumption: max. 2,400 W
Mains: 220..240 V or 110..120 V, 50..60 Hz
Dimensions: Width 270 mm/ Height 500 mm/ Depth 490 mm
Weight: 66 kg

Colours: Silver or black
