Even more subtle. Even more trans­parent. With an even bigger soundstage and a force beyond equal. WATT makes another quantum leap from the celebrated perfor­mance of our audio­phile amplifier SAM onto another level. Whoever wants the ulti­mate in a single machine – WATT’s your choice. From this day on.

Special features WATT

• Massive aluminium body and resonance-optimized fixation with invisible screws.
• Magneti­cally and capactively optimized circuit and device design, shortest signal paths.
• Double-mono design for maximum channel separation.
• Electronic volume control with high audio grade components.
• Non-disen­gageable DC servo, no sound degrading capa­citors or coils in the signal path.
• ULA technology (Ultra Linear Amplifier).
• Separated power supply for control and analog sections.
• Two separated power supplies for driver stage and power stage of amplifiers.
• One encapsulated 50 VA toroid transformer with separated windings for input and driver stage.
• Two encapsulated 700 VA toroid transformers for the power stage.

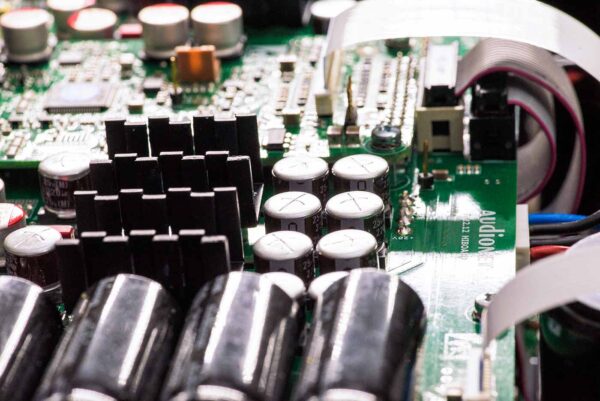

• Total capacitance more than 200.000 µF.
• Consequent double-mono design of phono module for MM and MC pickups, setup by user menu.
• Internal wiring with gold-doped pure silver cables.
• Rhodium speaker terminals by Furutech.
• Rhodium fuse.
• By-pass mode for integration into home cinema systems.

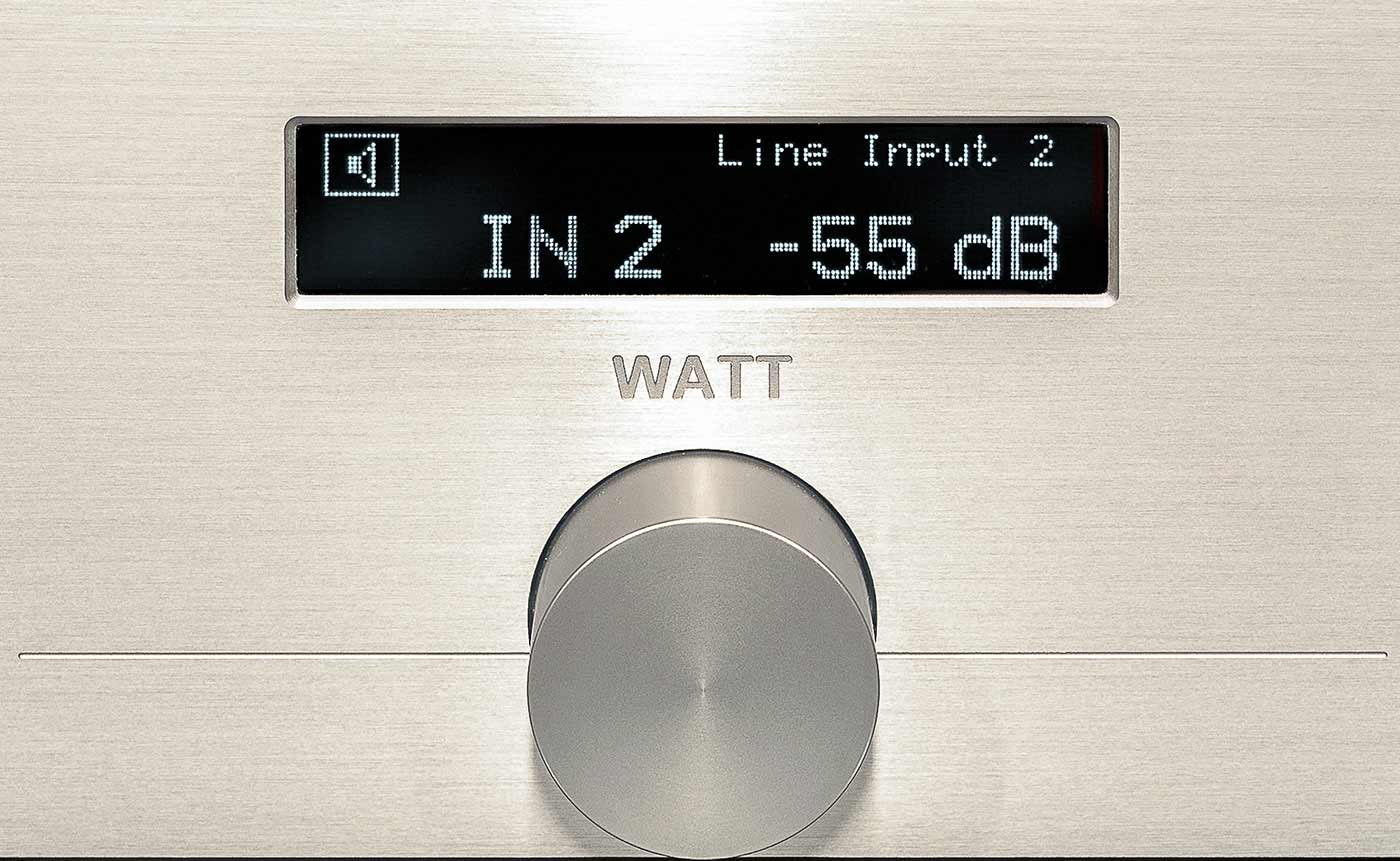

• Microprocessor with separate power supply – controls and monitors all functions and informs the user via dimmable display.
• 2 Audionet Link outputs to control further Audionet devices remotely.
• Switchable headphones output driven by power stage.
• Dedicated WATT/PLANCK Audionet metal remote control in matching color.

Function
Analog integrated stereo amplifier.

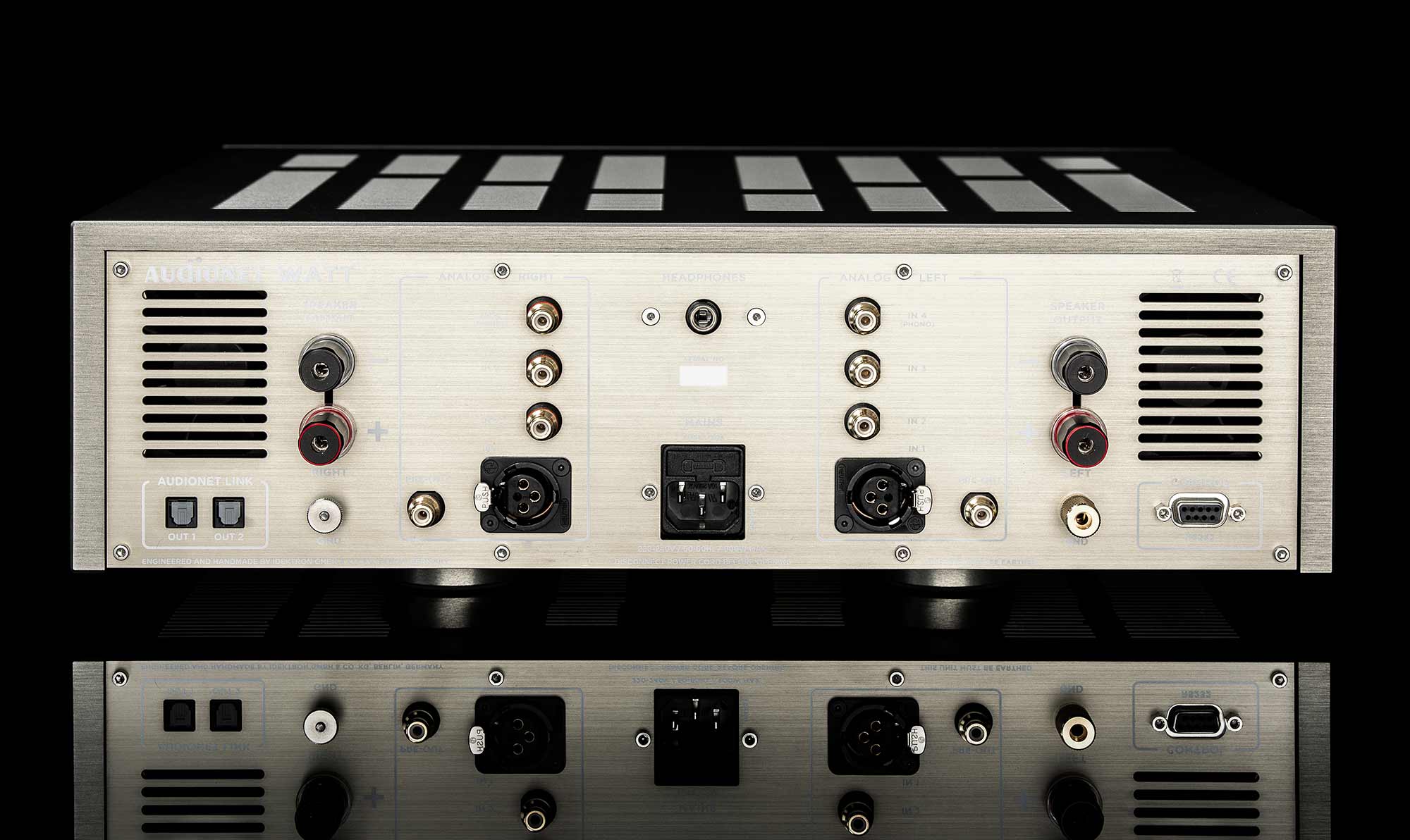

In- and Outputs
Inputs:
– 3 pairs RCA line, gold plated, Teflon insulted
– 1 pair XLR balanced, gold plated (Neutrik)
Outputs:
– 2 pair Furutech 4 mm-jacks, Rhodium
– 1 pair RCA, gold-plated, Teflon insulated (Pre Out)
– 2 Audionet Link, optical (Toslink)
– 1 headphones socket (6.3 mm, stereo)

Technical Data
Output power: 2 x 167 W into 8 Ω/ 2 x 284 W into 4 Ω/ 2 x 443 W into 2 Ω
Frequency response: 0.3 – 650,000 Hz (-3 dB)
Damping factor: typ. 1,000 at 100 Hz
Harmonic distortion: k2 typ. -101 dB, k3 typ. -107 dB, @1 kHz, 25 W / 4 Ω
THD + N: < -98 dB @1 kHz, 100 W / 4 Ω
SNR: > 106 dB (A-weighted)
Channel separation: > 103 dB @ 1 kHz
Filtering capacitance: 200,000 µF
Input impedance: Line input 50 kΩ
XLR input 7 kΩ
Power consumption: < 1 W Stand by, typ. 900 W
Mains: 220..240 V or 110..120 V, 50..60 Hz
Dimensions: Width 430 mm/ Height 130 mm/ Depth 450 mm
Weight: 25 kg
